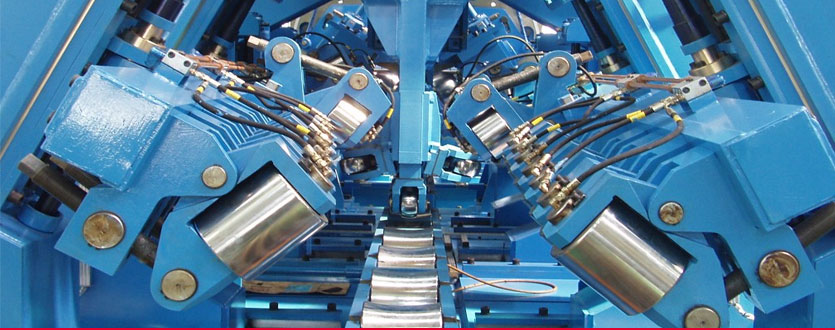

Steelaa Solutions can provide the varies Spares of the Cold Rolling Mills as well the Tube Mills.
Spare Parts
Relying on our wide experience and skills in this field, we are noted as one of the most prestigious suppliers of Cold Rolling Mill, Tube Mill, and Slitting Line and Cut-to-length line spares.
The spares as per the Customer’s requirement are also can be arranged.
Key Features
- Uniform heat treatment
- Robust construction
- Low power consumption
- Long life span
Consumables
The following range of mechanical and electrical spares is available:
Saw Blades
Ferrite Rod
Scarfing Tools ID and OD
Impeders: The primary function of an impeder is to increase the impedance of the parasitic current path around the inside circumference of the tube, thus diverting more of the available energy into the weld “vee”. Impeders also concentrate the magnetic flux created by current in the work coil, so that a greater amount of energy is induced into the tube. Below are a few links to the different styles of impeders that EHE manufacturers.
Fins
Bearings
HF Welders: HF Solid State Welders for ferrous and non-ferrous Pipes and Tubes Industry.
What is high frequency (HF) induction welding?
High frequency induction welding is used to make pipe or tube from strip which is fed into rolls which form the strip into a cylindrical shape. The faying edges are brought together between squeeze rolls to produce a V at the point of welding, with an included angle of typically 2-5° for steel.
A high frequency coil introduces current into the tube ahead of the squeeze rolls. This current is concentrated on the edges of the strip in the V and resistance heats a narrow zone at the edges to the welding temperature. The squeeze rolls consolidate the weld by expelling any melted material and contaminants and forming a small upset bead inside and outside the tube. These beads may be immediately scarfed from the tube to give a smooth surface. Thin wall steel tube may be welded at up to a few hundred m/min.
Advantages:
- Greater efficiency
- Enhanced Reliability
- Safety
- Compact Design
For more information about Spares, please contact us.
